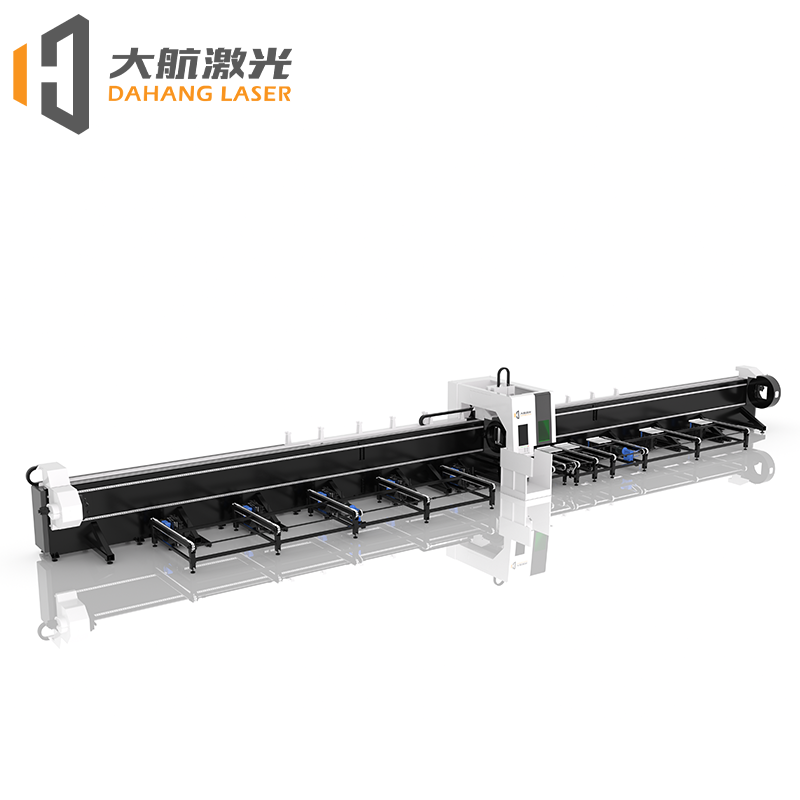

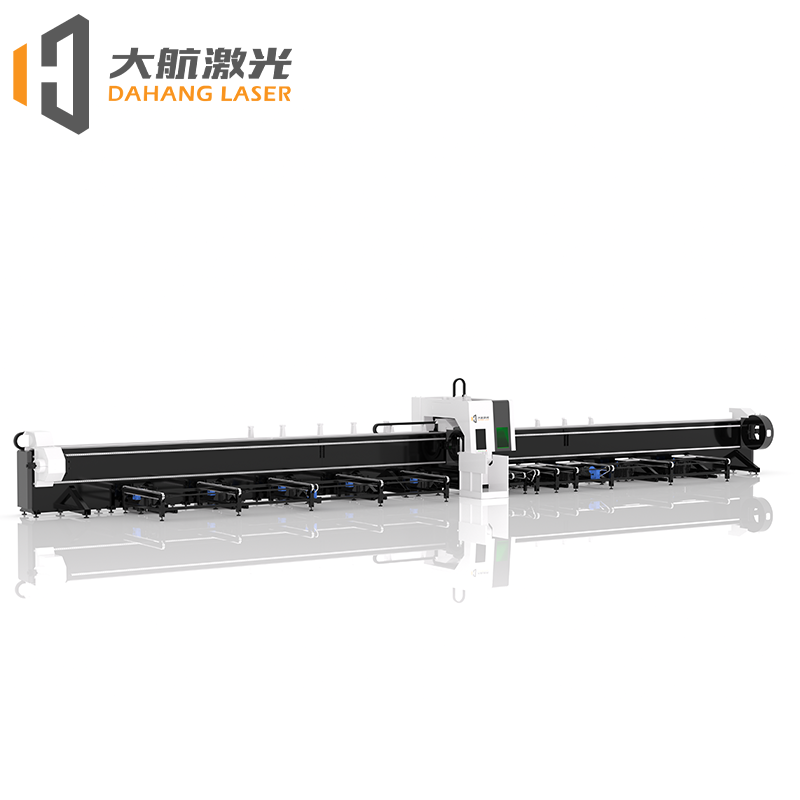

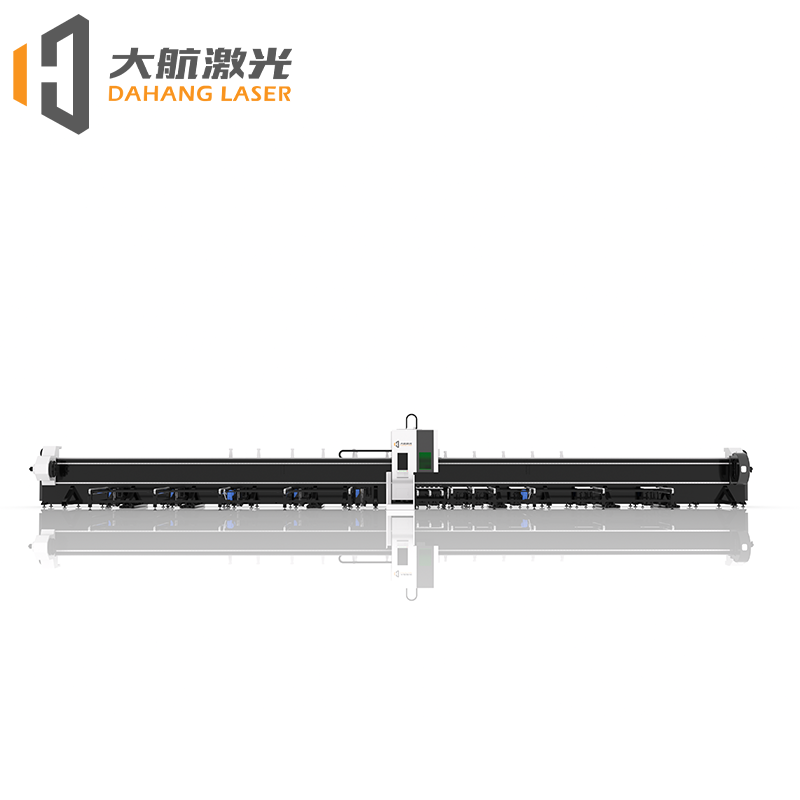

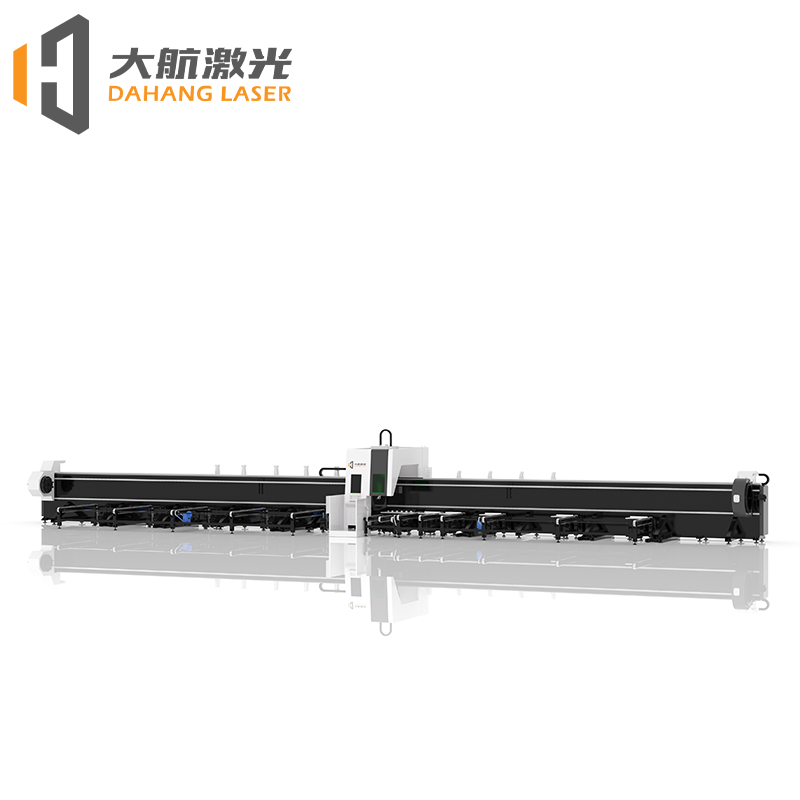

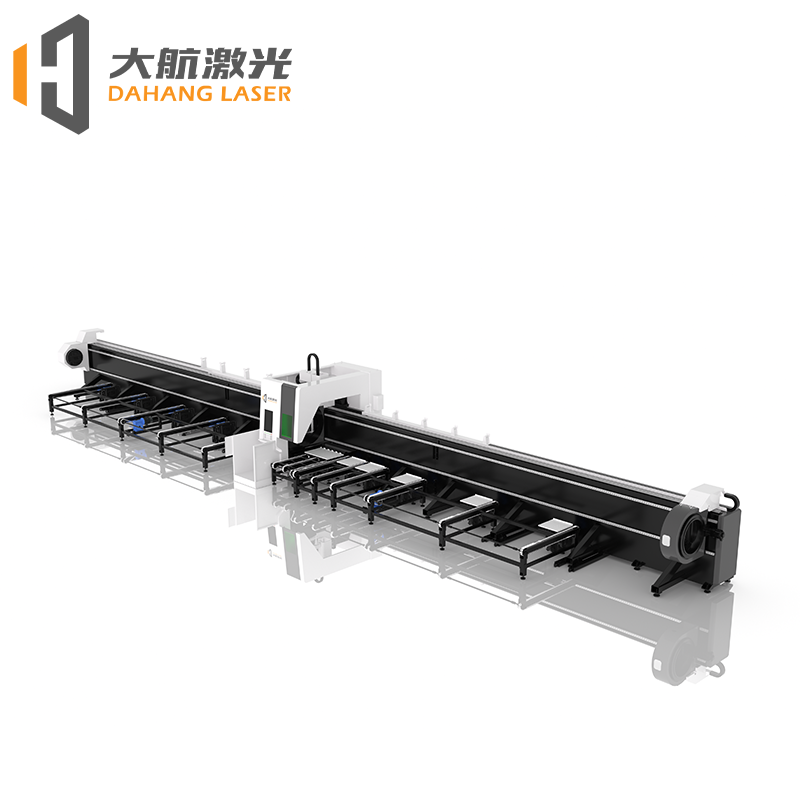

The DT Series Laser Tube Cutting Machine is specially designed for efficient and precise processing of various metal tubes and profiles. With its stable machine structure and optimized transmission system, it delivers accurate cutting performance, smooth operation, and reliable results for continuous production. Equipped with an advanced control system and professional tube-cutting configuration, it ensures high efficiency, easy operation, and low maintenance. The DT Series is an ideal solution for manufacturers seeking dependable tube processing with strong productivity and long-term value.
Laser power: 6-30 [kW]
Cutting range: φ10 — φ550
Maximum no-load speed: 60 [m/min]
Maximum Load: 2000 [kg]
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Precisely cut samples
| Model | DH-12035 | DH-12055 |
|---|---|---|
| Cutting range | φ10~φ350 | φ40~φ550 |
| Laser power | 6000W~30000W | |
| Repositioning accuracy | 0.05mm | |
| Max. moving speed | 60m/min | |
7 practical answers buyers care about: side-mounted structure, three-chuck stability, pipe range, efficiency, and after-sales support.
The side-mounted three-chuck structure is designed to provide stronger support and more stable clamping during tube feeding and cutting. It is especially suitable for long, heavy, and large-diameter pipes, helping improve processing stability, reduce vibration, and maintain better cutting consistency in continuous production.
Our side-mounted three-chuck laser tube cutting machine is suitable for round tubes, square tubes, rectangular tubes, and many common metal profiles. Depending on the machine model, it can also process large-diameter and heavy-duty pipes used in steel structure, construction machinery, agricultural equipment, and industrial fabrication.
The machine is commonly used for cutting carbon steel, stainless steel, aluminum, galvanized steel, and other mainstream metal tubes and pipes. The actual cutting performance depends on material type, thickness, laser power, assist gas, and parameter settings. We can recommend the right configuration based on your specific processing needs.
Yes. The side-mounted three-chuck configuration is particularly suitable for large-diameter, long-length, and heavy pipes that require stronger support and more stable movement. It is a practical choice for customers who need efficient processing of structural tubes, heavy pipes, and demanding industrial workpieces.
Yes. With its rigid machine structure, stable three-chuck support system, precision transmission components, and optimized control system, the machine is designed for reliable accuracy and repeatability. Before delivery, we carry out machine testing and sample cutting to ensure stable cutting quality under real production conditions.
Yes. According to different production requirements, we can provide manual, semi-automatic, or fully automatic loading and unloading solutions. These options help improve productivity, reduce labor costs, and make the overall pipe cutting workflow more efficient and stable, especially for high-volume processing customers.
We provide installation guidance, remote training, technical support, troubleshooting assistance, and spare parts service for overseas customers. Our after-sales team can support machine commissioning, daily maintenance, and problem solving, helping customers reduce downtime and keep production running smoothly.
